Wireless Audio Transmitter and Receiver
/

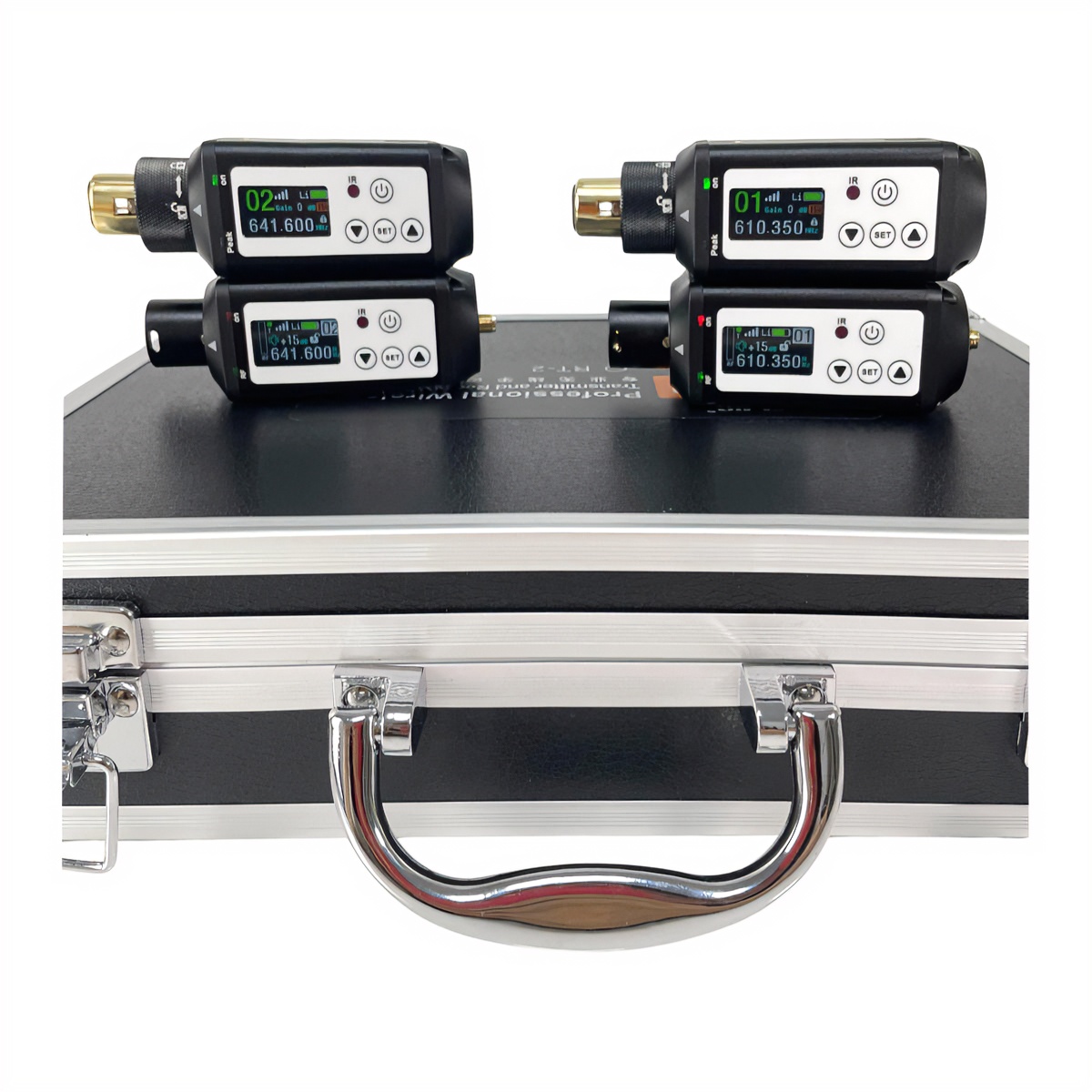

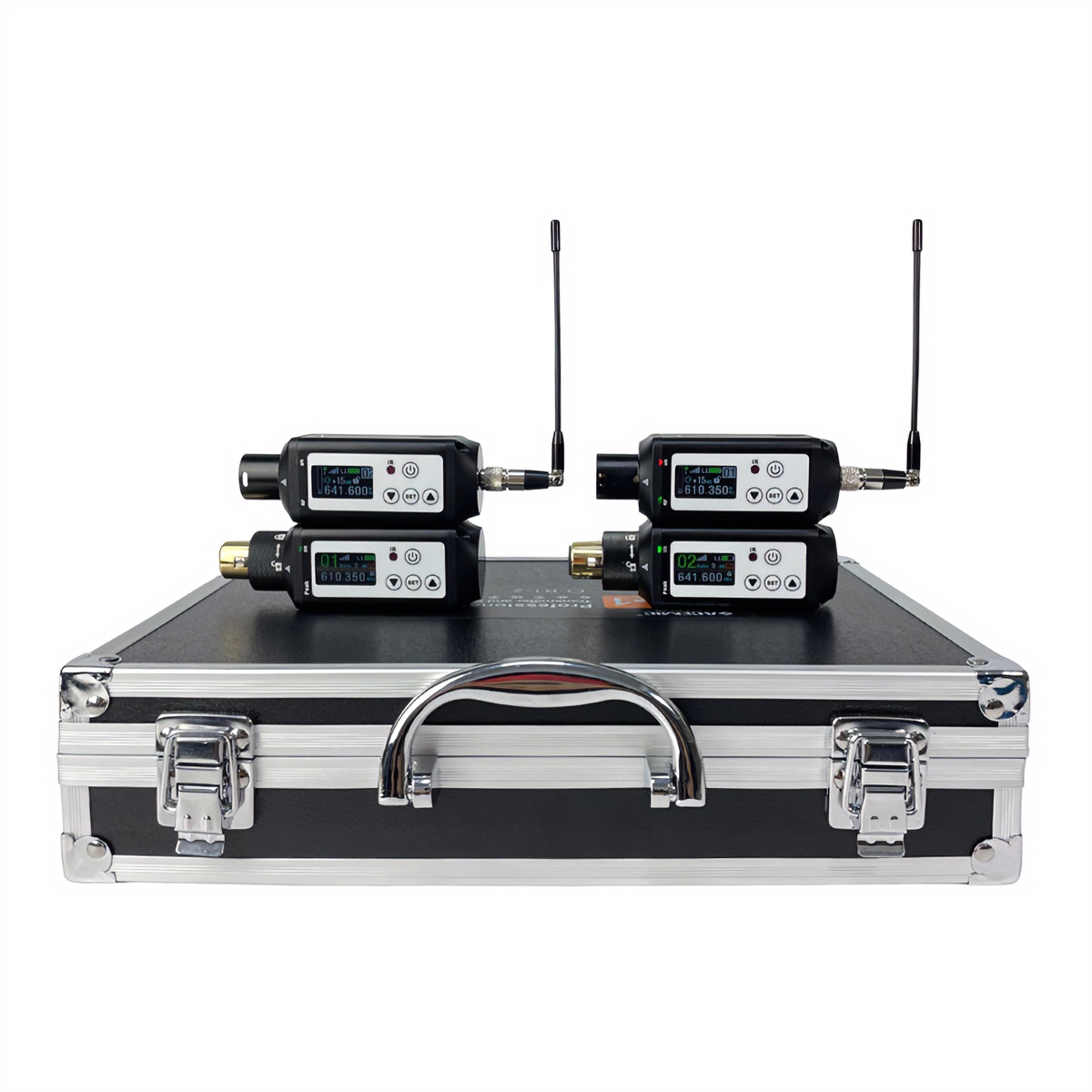

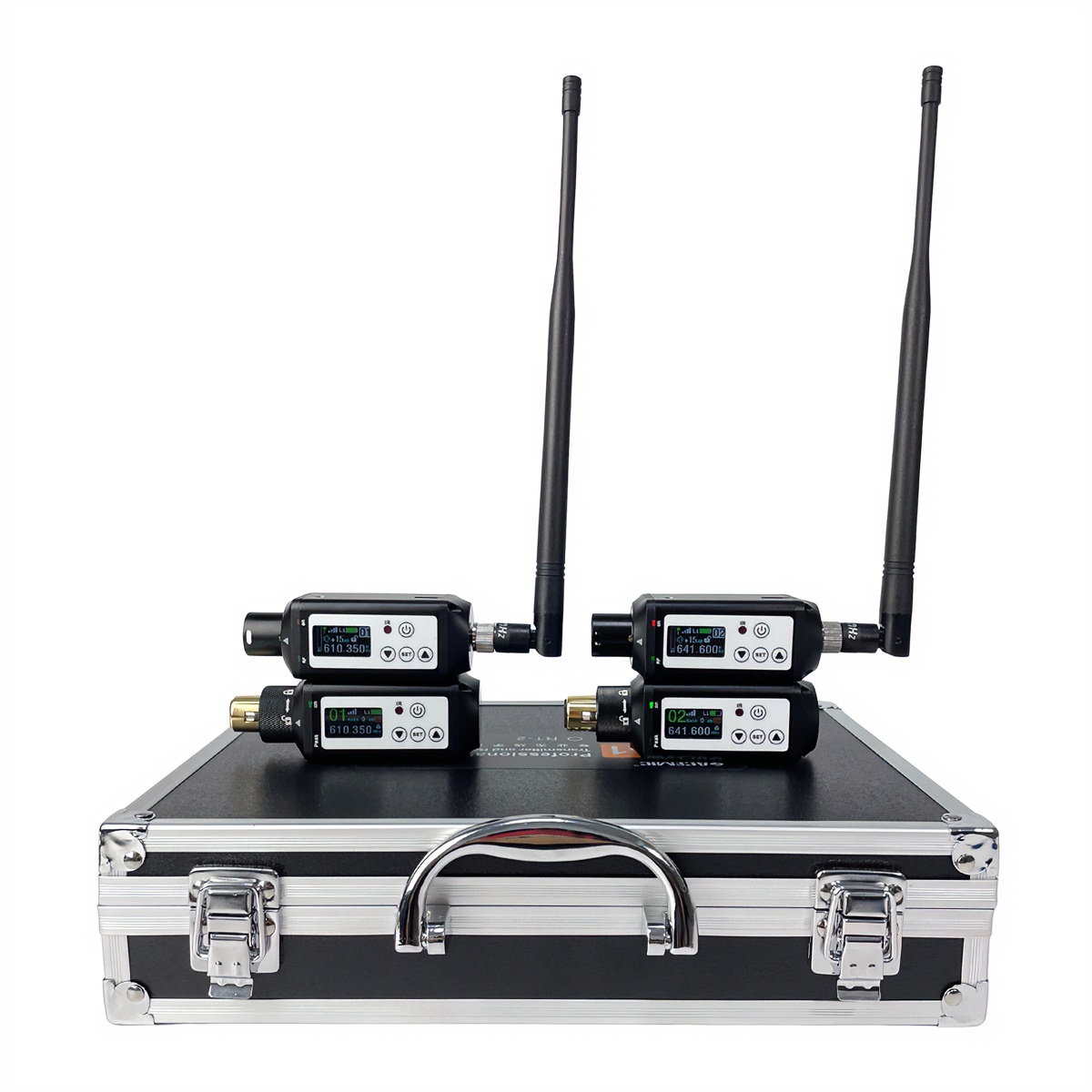

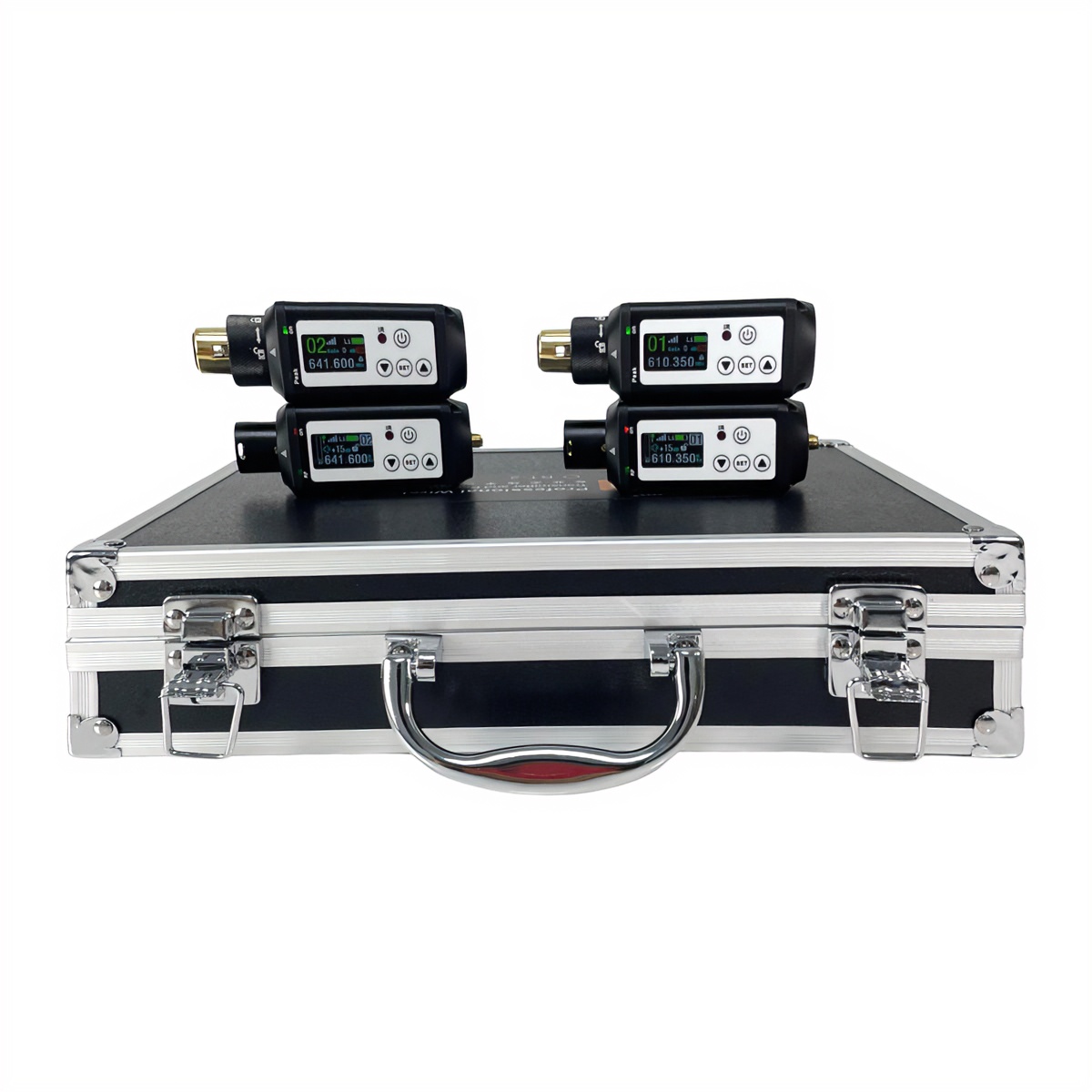

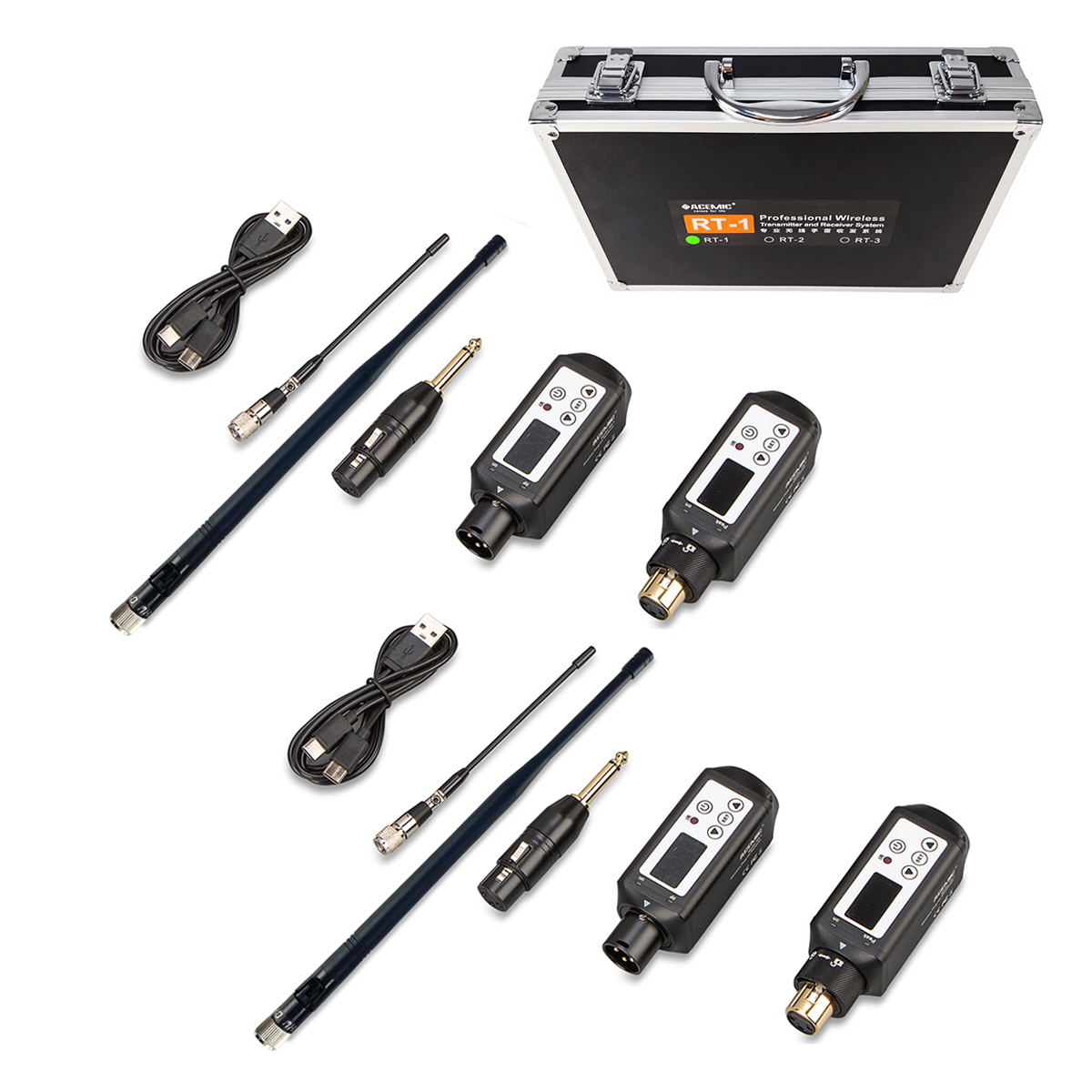

RT-1Dual Plug-On Wireless Audio Transmitters and Receivers for PA Speakers
RT-1Dual Plug-On Wireless Audio Transmitters and Receivers for PA Speakers
WISHLIST
Two Sets of XLR Wireless Audio Transmitters and Receivers Systems, with Mic / Line Output, for Column PA Speaker, Mixer, Instrument, Condenser or Dynamic Microphone, 100m Range
Features:
The RT-1Dual is a compact, portable XLR wireless audio transmitters and receivers which is easy to use while offering professional-grade sound quality and performance.
1. Features a high-definition, high-contrast TFT display with support for both Chinese and English menus, making operation clearer and more intuitive.
2. Provides real-time spectrum monitoring, allowing users to directly view the wireless signal situation on-site and ensure the selection of interference-free signal frequencies.
3. Supports charging via a Type-C charging port.
4. Offers XLR balanced output and includes an XLR to 6.35mm adapter for compatibility with a wider range of devices.
5. Uses ID numbering for quick identification and differentiation of corresponding receivers and transmitters.
6. System output gain is adjustable from -18dB to +15dB.

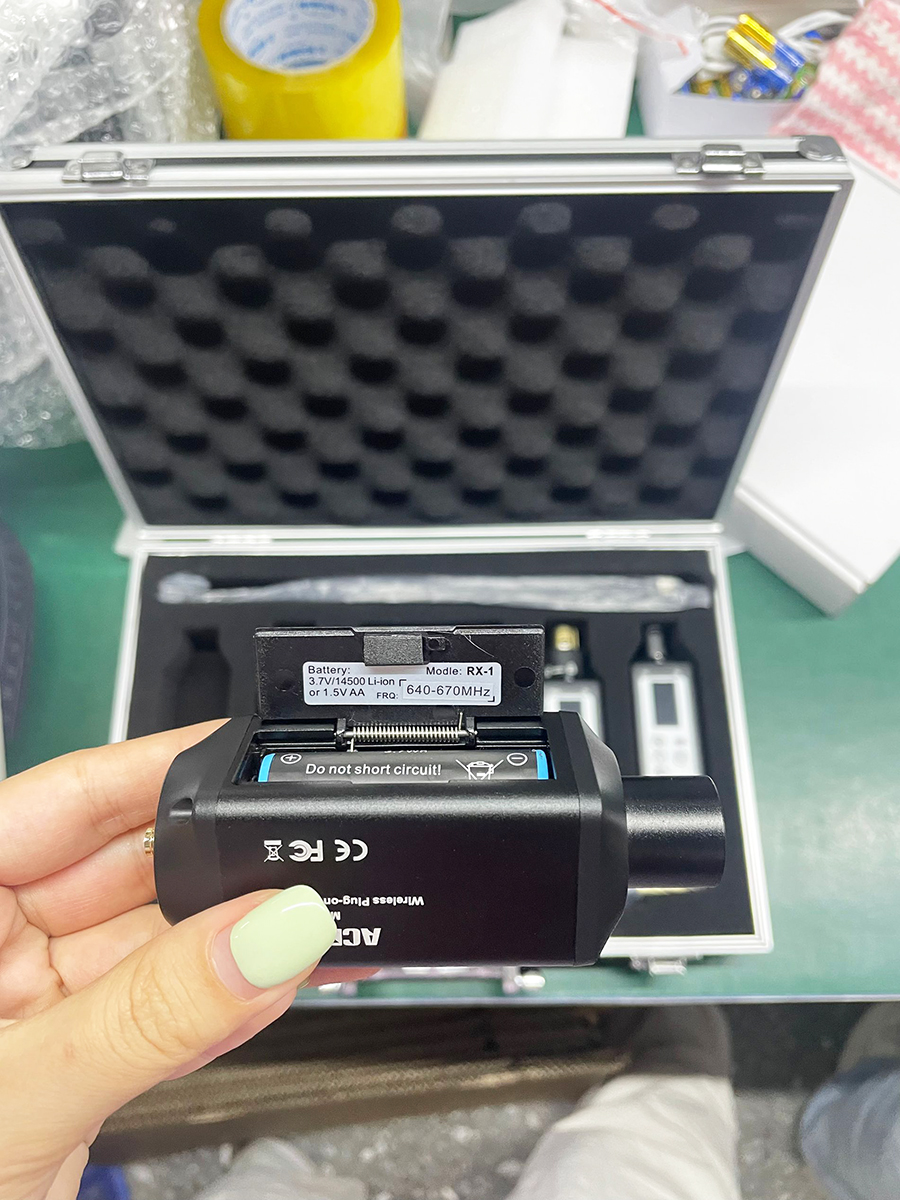

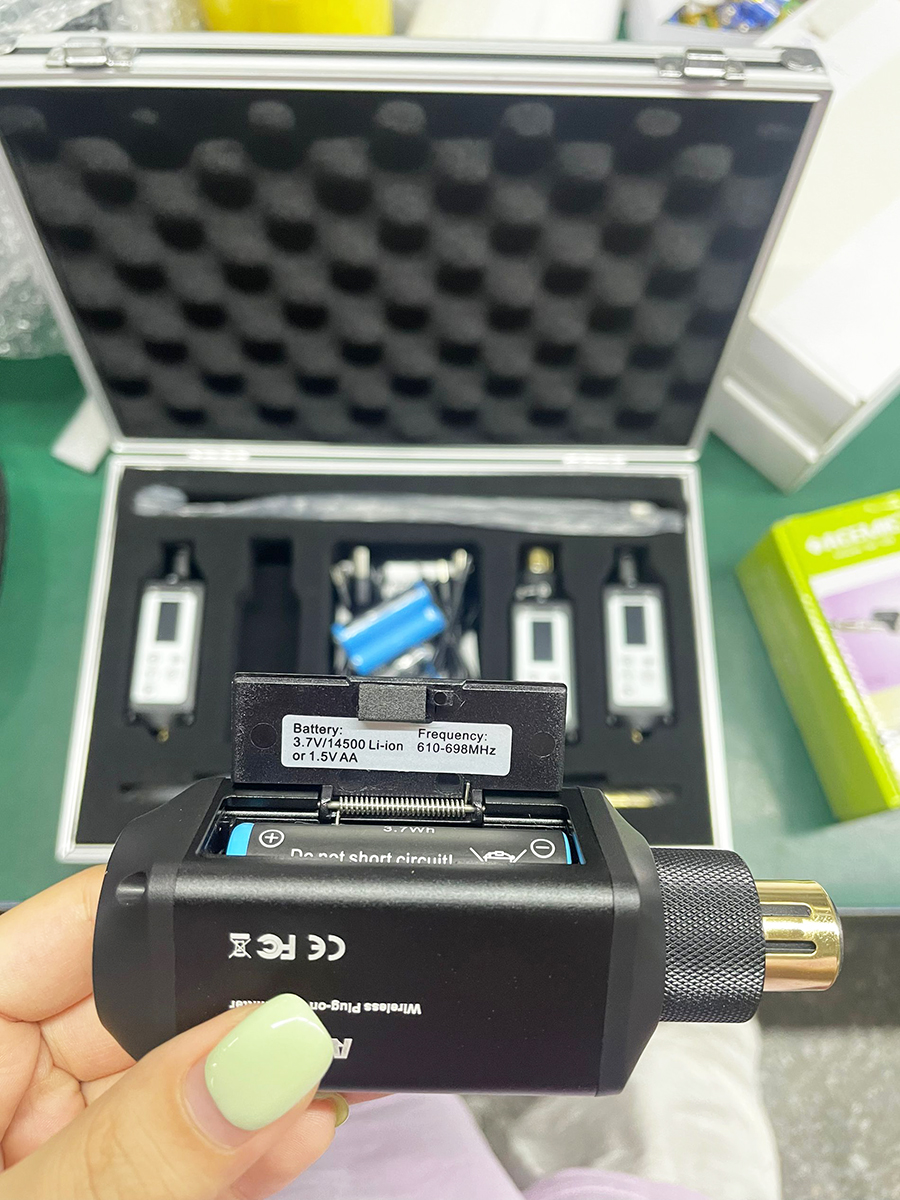

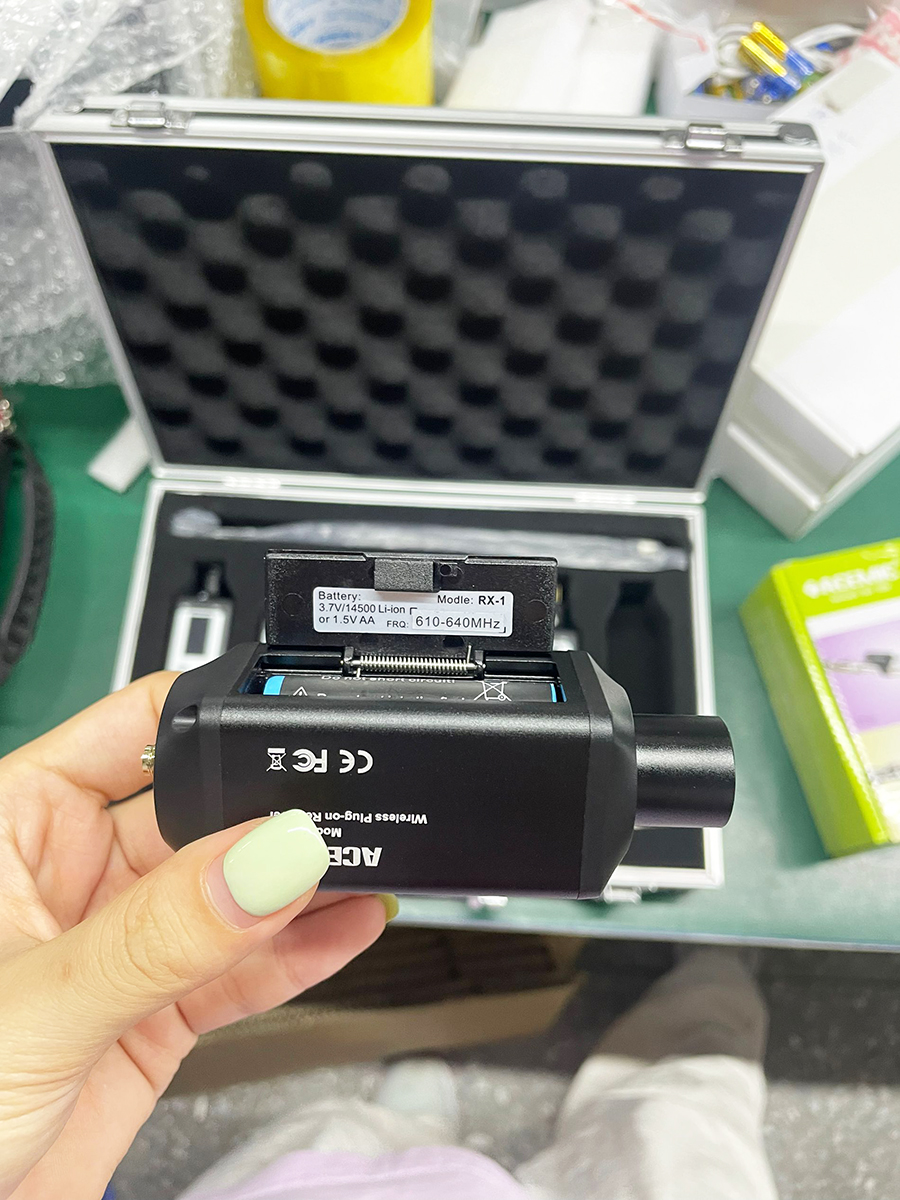

7. Supports both 14500 3.7V Li-ion batteries and standard 1.5V AA batteries.
The RT-1Dual is a compact, portable XLR wireless audio transmitters and receivers which is easy to use while offering professional-grade sound quality and performance.
1. Features a high-definition, high-contrast TFT display with support for both Chinese and English menus, making operation clearer and more intuitive.
2. Provides real-time spectrum monitoring, allowing users to directly view the wireless signal situation on-site and ensure the selection of interference-free signal frequencies.
3. Supports charging via a Type-C charging port.
4. Offers XLR balanced output and includes an XLR to 6.35mm adapter for compatibility with a wider range of devices.
5. Uses ID numbering for quick identification and differentiation of corresponding receivers and transmitters.
6. System output gain is adjustable from -18dB to +15dB.
7. Supports both 14500 3.7V Li-ion batteries and standard 1.5V AA batteries.
32
sold
Quantity
-
Detail
RT-1 Wireless Transmitter and Receiver User Manual.pdf
Model: RT-1Dual
Operating Range: 100m, 492ftSpecifications
Frequency Range: UHF 600-937 MHz (region dependent)
System Performance
Latency: <2 msDynamic Range: >110 dBTotal Harmonic Distortion: <0.5% (Line)Frequency Respons: 35Hz~18KHz (Line)ReceiverFrequency Range: UHF 610-640 MHz and 640-670 MHz
(USA: 538-588 or 902-928 MHz, ROK: 925-937 MHz)Bandwidth: 30MHzMaximum Channels: 1200Receiver Sensitivity: -95dBm/S/N=12dBFrequency Stability: ±10PPMAntenna Input: 1*SMA/50ΩImage Rejection: >100dBThird-Order Intermodulation Rejection: >75dBBlocking Rejection: >75dBAdjacent Channel Rejection: >100dB (±200KHz)Power Requirements: 1 x 14500 Li-ion Battery or 1 x AA Alkaline BatteryBattery Life: Standard 14500 Li-ion Battery: Approximately 8 hoursTransmitterFrequency range: UHF 610-698 MHz
(USA: 538-588 or 902-928 MHz, ROK: 925-937 MHz)Bandwidth: 88 MHzMaximum number of channels: 8800Transmit power: 10/20mWMaximum frequency deviation: 65KHzPhantom power supply for pins 2 and 3: 15V/48VPower requirements: 1*14500 Li-ion battery or 1 AA alkaline batteryBattery life: Standard 14500 Li-ion battery 8-9 hours (high power mode) 10-11 hours (low power mode)
Elevate Your Audio: The Acemic RT-1 Professional UHF XLR Wireless Transmitter and Receiver
Unleash Your Microphone, Preserve Your Sound
The Acemic RT-1 is not just a XLR transmitter and receiver; it is a high-fidelity bridge between your favorite professional microphones and your audience. Whether you are a vocalist using a classic dynamic mic, a presenter with a high-end condenser, or a videographer needing a clean audio link, the RT-1 delivers studio-grade performance in a palm-sized, portable package.
By eliminating the constraints of cables, the RT-1 provides the freedom to move, perform, and engage without the fear of tripping over wires or being tethered to a mixer.
Comprehensive Feature Breakdown
1. Intelligent UHF Engineering with Real-Time Spectrum Analysis
In an era where 2.4GHz bands (Wi-Fi) are increasingly crowded and prone to dropouts, the RT-1 utilizes the professional UHF (Ultra High Frequency) spectrum.
-
Visual Interference Protection: The standout feature is the integrated Spectrum Monitor. Unlike basic receivers that force you to guess which channel is clear, the RT-1 displays a live graph of the radio environment.
-
Precision Tuning: You can visually identify "spikes" in interference and move your frequency to a "valley" of silence, ensuring a rock-solid connection even in venues packed with smartphones and routers.
2. Studio-Grade Precision: Adjustable Gain Control
Every microphone has a different personality. A sensitive condenser mic requires different handling than a rugged dynamic mic.
-
The Power of Gain: The RT-1 XLR wireless transmitter and receiver offers an expansive output gain adjustment from -18dB to +15dB.
-
Why it Matters: This allows you to "gain-stage" correctly at the source. If your signal is too hot and clipping, dial it back. If you are recording a soft-spoken presenter, boost the gain without adding the floor noise typically found in cheap preamps.
3. High-Definition Visual Interface
Stop squinting at blinking lights. The RT-1 XLR wireless transmitter and receiver features a High-Contrast TFT Color Display.
-
Bilingual Menu: Fully supports both English and Chinese languages.
-
Critical Data at a Glance: Monitor your battery percentage, signal strength, ID number, and frequency simultaneously. The high contrast ensures the screen remains visible under bright stage lights or outdoors in sunlight.
4. Professional Connectivity & Build
The RT-1 is built for the rigors of the road while maintaining a sleek, "exquisite" aesthetic.
-
XLR Balanced Integrity: The native XLR connection ensures a balanced signal path, minimizing electromagnetic interference.
-

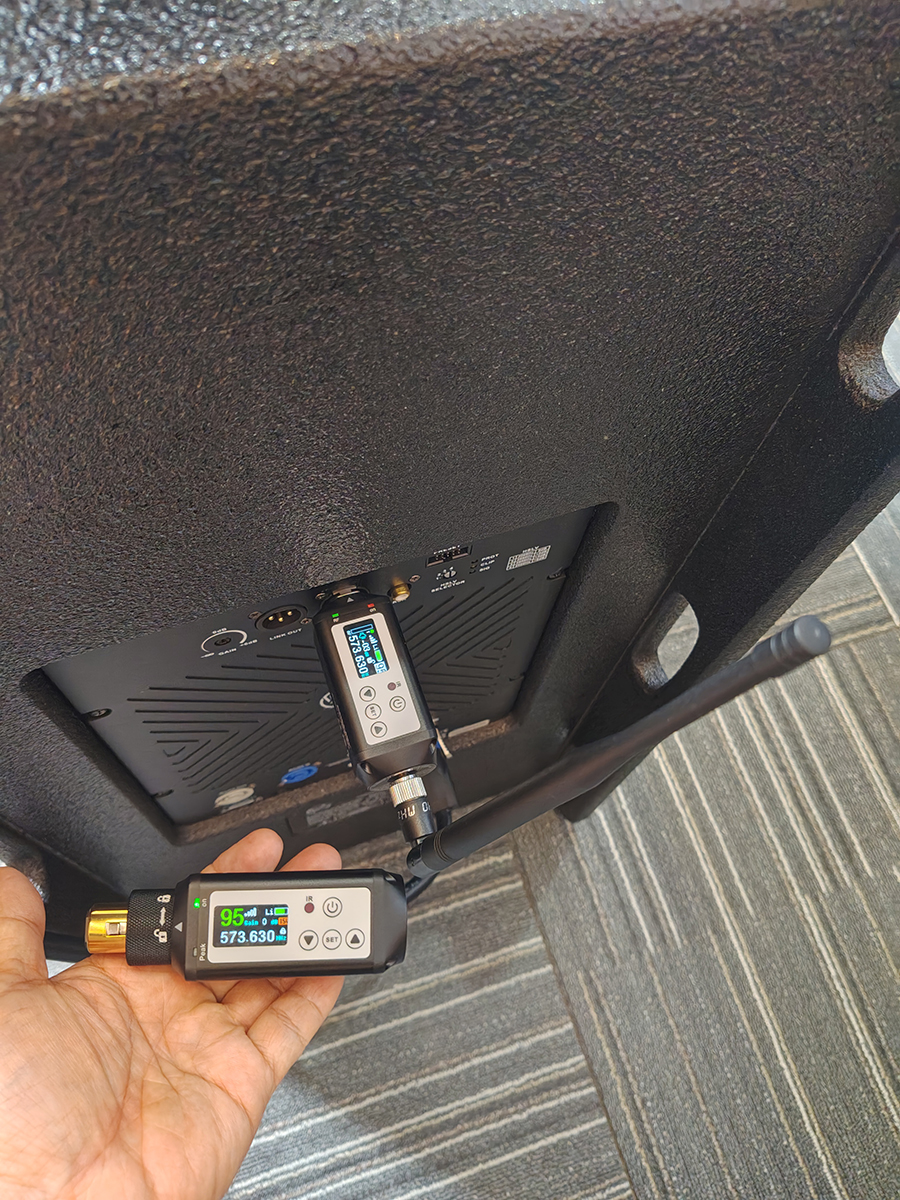

Universal Compatibility: We include a high-quality XLR-to-6.35mm (1/4") adapter. This makes the system "plug-and-play" with everything from professional consoles to portable PA "party" speakers and guitar amplifiers.
5. The Ultimate Power Solution: Dual-Fuel Technology
Power failure is the enemy of a live performance. The RT-1 wireless transmitter and receiver offers a unique hybrid power system:
-
Rechargeable Efficiency: Use 14500 Lithium batteries for daily use. Charge them directly inside the unit via the modern USB Type-C port—the same cable used for most modern smartphones.
-
Emergency Backup: If you forget to charge, simply pop in a standard 1.5V AA alkaline battery. This dual-fuel flexibility ensures you are never stranded without power.
6. Multi-System Coordination (ID Identification)
Running multiple wireless units at once can be a logistical nightmare. The RT-1 uses a unique ID Identification System. Each transmitter and receiver pair can be assigned a specific ID number, making it nearly impossible to accidentally "crosstalk" or mix up hardware when managing several performers on one stage.
Who is the RT-1 XLR wireless audio transmitter and receiver for?
-
Live Vocalists: Turn your favorite wired stage mic into a wireless powerhouse.
-
Public Speakers: Move freely around the stage or conference room without a belt pack.
-
Content Creators: Connect a shotgun mic wirelessly to your camera or interface for clean, cable-free audio.
-
Event DJs: Easily set up remote speakers or wireless microphones for wedding toasts.
-
-
Customer Reviews
Wil*******vis
2026-04-27
One of the Best
I recently used the Acemic RT-1Dual as a wireless connection for a studio monitor setup, and I was genuinely impressed with its performance. The receiver was positioned inside my studio roughly 150 feet away from the transmitter, and even with obstacles like walls and vehicles in between, the signal remained strong and reliable. The sound quality was excellent—clear, full, and free from noise or dropouts. That’s a big deal in a studio environment where consistency matters. I also tested it with a microphone, and it performed just as well, delivering clean audio without interference. One of the standout features for me is the built-in rechargeable batteries. Not having to constantly swap out or purchase batteries is a huge convenience and cost saver over time. Overall, the Acemic RT-1Dual Sets deliver great sound quality, solid range, and dependable performance at an affordable price point. It’s a strong option for anyone looking for a reliable wireless audio solution in both studio and live settings.
